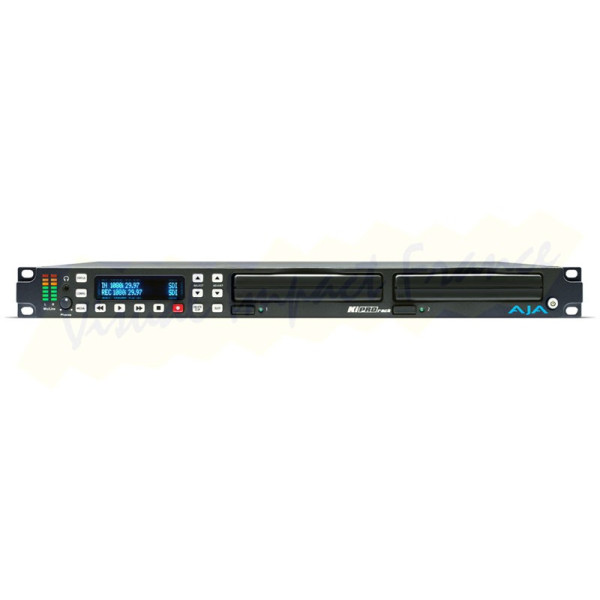

Aja Ki Pro Rack

Nouveau produit du NAB 2012, cet enregistreur qui reprend les caractéristiques de sont petit frère, le KiPro portable est dédié, de part son format rackable a être intégré en régie mobile ou bien a intégrer les baies de postproduction pour remplacer les enregistreurs traditionnels.

• Caractéristiques


Video Input
Digital:1 Channel, selectable input SD and HD-SDI (2xBNC), SMPTE-259/292/296 HDMIAnalog:SD/HD Component (3xBNCS): SMPTE/EBU N10, Betacam 525 line, Betacam 525J, YPbPr 12-bit A/D, 2x oversamplingVideo Output (all simultaneously active)
Digital:

SD and HD-SDI, SMPTE-259/292/296 (1xBNC)HDMIAnalog:

Composite (1xBNC):NTSC, NTSCJ, PAL 12-bit D/A, 8x oversamplingSD/HD Component (3xBNCs):SD: SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB12-bit D/A, 8x oversampling HD: YPbPr, RGB12-bit D/A, 2x oversamplingAudio Input
Digital:AES 24-bit, 8 channel, 48kHz (4xBNC) 24-bit SDI embedded audio, 8 channel, 48kHz HDMI embedded, 2 channelAnalog:24-bit A/D, 2 channel balanced (2 XLR), 48kHzInput level: LineAudio Output
Digital:AES 24-bit, 8 channel, 48kHz (4xBNC) 24-bit SDI embedded audio, 8 channel, 48kHz HDMI embedded, 2 channel
Analog:24-bit D/A, 2 channel balanced XLR, 48kHzNetwork:10/100/1000 Ethernet (RJ45)Embedded webserver for remote controlPanel User Interface2 x 20 character display, with dedicated buttonsTimecodeLTC timecode input and output via BNC SDI embedded RP188 timecode On-screen timecode display on SDI 2 outputSerial PortRS-422 (slave pinout), 9-pin (available beginning with version 2.0 firmware)Hardware up conversion - 10-bitAnamorphic: full-screenPillar box 4:3: results in a 4:3 image in center of screen with black sidebarsZoom 14:9: results in a 4:3 image zoomed slightly to fill a 14:9 image with black side barsZoom Letterbox: image zoomed to fill screenZoom Wide: combination of zoom and horizontal stretch to fill 16:9 screen; this setting can introduce a small aspect ratio changeHardware down conversion - 10-bitAnamorphic: full-screenLetterbox: image is reduced with black top and bottom added to image area with the aspect ratio preservedCrop: image is cropped to fit new screen sizeHardware cross conversion - 10-bit

1080i to 720P

720P to 1080iStorage Module drive bays2 (each with eject button and select LED)Physical
