La version ZEISS CP.3 XD est dotée d'une technologie de données innovantes pour accélérer et simplifier le flux de travail sur la mise en oeuvre et la post-production.
The ZEISS CP.3 lenses offer the perfect combination of high image quality and reliable usability. They exhibit the clean, crisp characteristics ZEISS is known for, together with an interchangeable mount system and full-frame coverage.The ZEISS CP.3 XD version features innovative and ground-breaking lens data technology to speed-up and simplify the workflow on set and in post-production.
The ZEISS eXtended Data is a unique technology which is based on the i Technology and provides information about the lens' distortion and shading characteristics in real time. With the ZEISS CP.3 XD lenses, even small productions on a limited budget gain access to the advanced techniques common in state-of-the-art, big budget films, commercials and television shows.
True cine look
Ranging from 15 mm to 135 mm, the ten focal lengths available in the ZEISS Compact Prime CP.3 or CP.3 XD series cover all applications from wide-angle to telephoto. The ZEISS CP.3 lenses feature advanced lens coatings, painted lens rims and special light traps within the barrel to eliminate unwelcome veiling glare and flares. The result is higher contrast, richer blacks and more saturated colors.
- Clean and crisp ZEISS look which matches perfectly with other ZEISS cinema lenses
- Color matching and covering full frame across the full range of focal lengths from 15 to 135 mm
- Special lens coatings support high-dynamic range projects
New ZEISS eXtended Data technology
The ZEISS eXtended Data technology adds new opportunities to simplify and increase the accuracy of the image capture and processing workflow. ZEISS eXtended Data unifies two data sets: key lens data based on the open /i Technology standard and supported by a wide range of cameras and accessories, plus ZEISS specific lens data that contains precise lens characteristics.
- A unique technology that provides information about the lens' distortion and shading characteristics in real time to speed-up the workflow on set and in post-production
- Lens settings are digitally captured on every frame, avoiding the need to manually record the lens settings for every shot
- Documentation of the lens' characteristics enhances creativity by allowing more complex shots to be handled in post-production
Ultimate cine ergonomics
The ZEISS CP.3 lenses are a professional toolset that simplifies your work on set. They are easy to handle, allow for fast changeover of equipment and give you great creative freedom to make your ideas come to life.
- Standardized positioning of the focus rings and a consistent 95 mm front diameter allows for fast and easy changeover while on set
- Extraordinarily smooth focus rotation even in extreme temperature conditions thanks to a new, sophisticated construction design
- Consistent T-stops simplifies lighting on set and exposure compensations (T2.9 for 15 to 21 mm and T2.1 for 25 to 135 mm)
Compactness redefined
The compact and light-weight design enables you to use different stabilizing systems and to have a compact camera setup that is ideal for shooting in narrow spaces and for capturing dynamic shots.
- The compact and light-weight design is ideal for handheld, gimbal, drone and Steadicam applications
- Consistent size and weight across most of the focal lengths enables quick change of lenses when used on drones and gimbals
- The ultra-smooth focus rotation allows use of small focus motors
ZEISS eXtended Data
Expanding your possibilities.
While on set, the ZEISS eXtended Data feature enables members of the crew to monitor lens settings in real-time, pre-visualize modified images and to use new, automated search functions within data wrangling. In post-production, ZEISS eXtended Data offers numerous benefits such as image fine-tuning, editing and color grading, visual effects, virtual and augmented reality, multi-cam live productions, projection or 3-D imaging. An additional plug-in provided by ZEISS allows an easy implementation of ZEISS eXtended Data in a number of leading software tools.
ZEISS eXtended Data reduces workflow costs and facilitates the exchange of lens information between the production and post-production departments. ZEISS eXtended Data unifies two data sets:
- Key lens data
The ZEISS eXtended Data technology is based on the open /i Technology and is supported by a wide range of cameras and accessories. Key lens data provides frame-accurate information about: - Lens name, type and focal length
- Calibrated focusing distance
- Calibrated T-stop value
- Depth-of-field data in real time and hyperfocal distance
- Horizontal field-of-view
- Entrance pupil position
- ZEISS specific lens data
The ZEISS CP.3 XD lenses enable trailblazing, one-click correction of images, never before possible in motion picture workflow. ZEISS specific lens data provides frame accurate information about: - Lens name, type and focal length
- Lens distortion characteristics based on the focal point
- Lens shading* characteristics based on the focal point and effective T-stop
eXtended Data today and beyond
Upgradable options on CP.3 XD lenses
CP.3 XD lenses house encoder chips to deliver ZEISS eXtended Data, currently assigned to two data sets:
- Key lens data (focal length, focus distance and iris position) based on the /i Technology, which is supported by a wide range of existing equipment.
- ZEISS specific lens data, which contains precise information about distortion and shading
Lens characteristics can be applied and previewed on set using Pomfort LiveGrade Pro. To apply recorded lens characteristics in post-production ZEISS provides an OFX-plug-in. Initially the plug-in works with the grading software Blackmagic Design DaVinci Resolve. Support for other grading, editing and compositing software will be available in future.
Aperture | Close Focus1 | Length2 | Front diameter | Weight | Horizontal Angle of View | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Fullframe3 | APS-H4 | Super 355 | Normal 356 | APS-C7 | MFT8 | ||||||
CP.3 & CP.3 XD 15 mm/T2.9 |
T 2.9 to T 22 | 0.3 m 12" |
83.7 mm 3.30" |
95 mm 3.7" |
0.87 kg 1.9 lbs |
100° | 90° | 79° | 73° | 73° | 60° |
CP.3 & CP.3 XD 18 mm/T2.9 |
T 2.9 to T 22 | 0.3 m 12" |
83.7 mm 3.30" |
95 mm 3.7" |
0.86 kg 1.9 lbs |
89° | 80° | 69° | 63° | 64° | 51° |
CP.3 & CP.3 XD 21 mm/T2.9 |
T 2.9 to T 22 | 0.24 m 10" |
83.7 mm 3.30" |
95 mm 3.7" |
0.82 kg 1.8 lbs |
81° | 71° | 61° | 55° | 56° | 45° |
CP.3 & CP.3 XD 25 mm/T2.1 |
T 2.1 to T 22 | 0.26 m 10" |
83.7 mm 3.30" |
95 mm 3.7" |
0.82 kg 1.8 lbs |
72° | 62° | 53° | 47° | 48° | 38° |
CP.3 & CP.3 XD 28 mm/T2.1 |
T 2.1 to T 22 | 0.24 m 10" |
83.7 mm 3.30" |
95 mm 3.7" |
0.84 kg 1.9 lbs |
65° | 57° | 48° | 43° | 43° | 34° |
CP.3 & CP.3 XD 35 mm/T2.1 |
T 2.1 to T 22 | 0.3 m 12" |
83.7 mm 3.30" |
95 mm 3.7" |
0.80 kg 1.8 lbs |
54° | 47° | 39° | 35° | 35° | 28° |
CP.3 & CP.3 XD 50 mm/T2.1 |
T 2.1 to T 22 | 0.45 m 18" |
83.7 mm 3.30" |
95 mm 3.7" |
0.77 kg 1.7 lbs |
40° | 34° | 28° | 25° | 25° | 20° |
CP.3 & CP.3 XD 85 mm/T2.1 |
T 2.1 to T 22 | 1.0 m 3'3" |
83.7 mm 3.30" |
95 mm 3.7" |
0.88 kg 1.9 lbs |
24° | 20° | 17° | 15° | 15° | 12° |

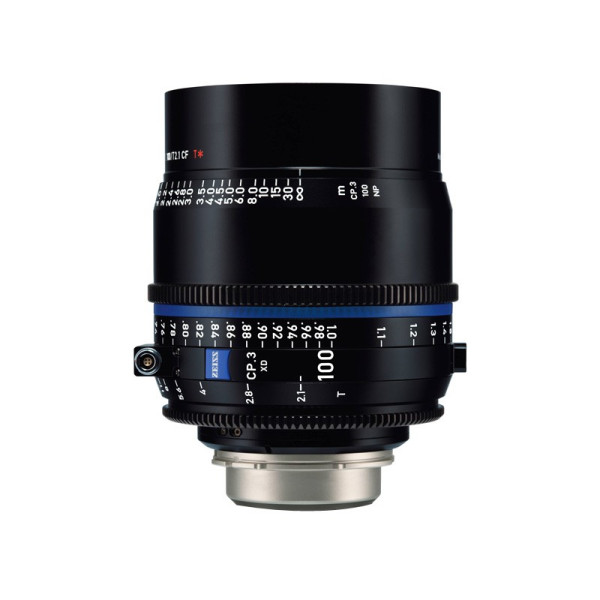

CP.3 & CP.3 XD 100 mm/T2.1 CF9 |
T 2.1 to T 22 | 0.7 m 2'6" |
126.5 mm 4.98" |
95 mm 3.7" |
1.01 kg 2.2 lbs |
20° | 17° | 14° | 13° | 13° | 10° |
CP.3 & CP.3 XD 135 mm/T2.1 |
T 2.1 to T 22 | 1.0 m 3'3" |
126.5 mm 4.98" |
95 mm 3.7" |
1.15 kg 2.5 lbs |
15° | 13° | 11° | 9° | 9° | 7° |
2) Front to PL mount flange
3) Horizontal angle of view for a full-frame camera (aspect ratio 1:1.5, dimensions 36 mm x 24 mm / 1.42 x 0.94")
4) Horizontal angle of view for an APS-H camera (aspect ratio 1:1.81, dimensions 30.2 mm x 16.7 mm / 1.19" x 0.66")
5) Horizontal angle of view for an ANSI Super 35 Silent camera (aspect ratio 1:1.33, dimensions 24.9 mm x 18.7 mm / 0.98" x 0.74")
6) Horizontal angle of view for a Normal 35 Academy camera (aspect ratio 1:1.37, dimensions 22 mm x 16 mm / 0.87" x 0.63")
7) Horizontal angle of view for an APS-C camera (aspect ratio 1:1.50, dimensions 22.3 mm x 14.9 mm / 0.88" x 0.59")
8) Horizontal angle of view for a Micro 4/3 (MFT) camera (aspect ratio 1:1.33, dimensions 17.3 mm x 13 mm / 0.68" x 0.51")
9) CF: Close focus capability"
