JVC KY PZ400N

Sur commande : Expédition sous 3 à 21 jours
2 274,00 € TTC
1 895,00 € HT
Accessoires
JVC KY PZ400N
Première caméra robotique de production vidéo 4K panoramique, inclinable et zoom de JVC, la KY-PZ400 offre NDI®|HX, SRT et prend en charge POE pour une véritable « solution à un fil ». Idéal pour une utilisation en studio ou sur le terrain, ce modèle PTZ permet une production IP à distance fiable pour l'éducation, les entreprises, les événements en direct et les applications sportives.
- Peut mémoriser 255 réglages et positions prédéfinis
- Objectif zoom optique large 71° avec rapport de zoom 12x (4,4 mm ~ 52,8 mm, F1.8 ~ F2.6)
- Streaming multiprotocoles SRT, RTSP, RTMP, RTMPS
- Le moteur d'encodage puissant prend en charge H.265, H.264 et MJPEG
- Encodage simultané haute (4K) et basse résolution avec flux principal et secondaire
- Le connecteur LAN prend en charge l'alimentation par Ethernet (POE)

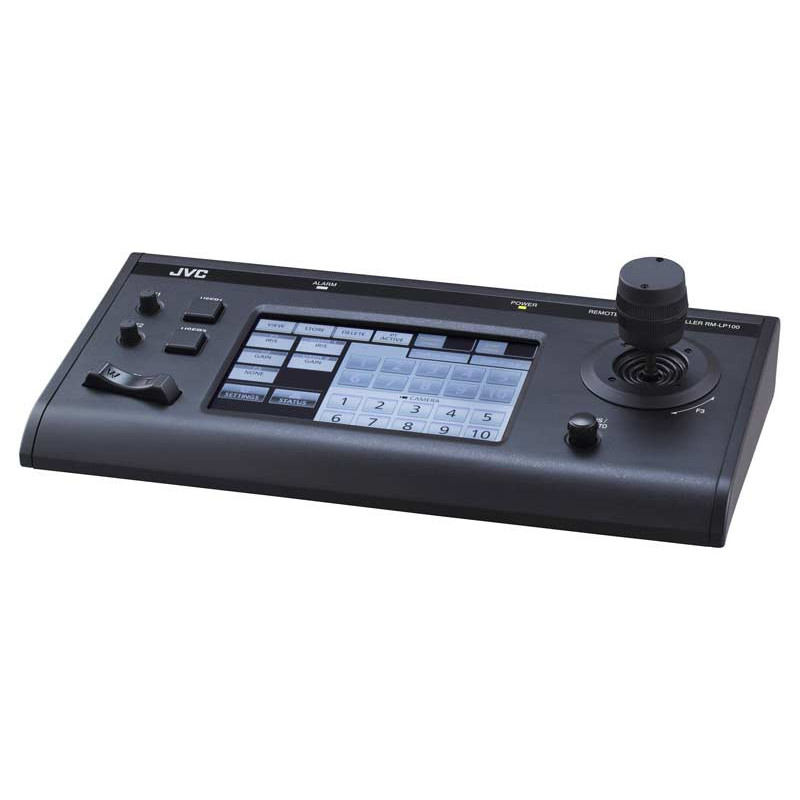

- Compatible avec le contrôleur RM-LP100 utilisant le protocole JVC et l'API
- Sorties numériques 3G-SDI et HDMI 2.0 (4K)
- Contrôle à distance via les protocoles IP RS232, RS485 et JVC
- Livré avec contrôleur IR, support de montage, adaptateur secteur et câble RS232
- Capteur CMOS 1/2,5 pouces (8,51 millions de pixels)
- Prise en charge NDI|HX
Camera Front-End Specifications | |
Image Sensor (inch) | 1/2,5 Inch CMOS |
Number of Sensors | 1 |
Mega Pixels | 8.51M |
S/N in dB | 41 |
Min. Illumination | 0.5 Lux |
Shutter speed | 1/30 to 1/10000 |
Optical Specifications | |
Optical Zoom X times | 12 |
Dynamic Zoom x times | 16 |
Lens F Number | 1.8 to 2.6 |
Lens ratio from / to | 4.4mm to 52.8mm |
Auto Focus | Yes |
PTZ Head Features | |
PAN Angle in degree +/- | 170 |
PAN Speed with AC Adapter max degree/sec. | 100 |
PAN Speed with POE+ max degree/sec. | 100 |
TILT Angle in degree | -30 to 90 |
TILT Speed with AC Adapter max degree/sec. | 69.9 |
TILT Speed with POE+ max degree/sec. | 69.9 |
Preset Positions | 255 |
Recording Formats | |
Encoder | Encoder: H.265/H.264/MJPEG |
Resolution 3840 x 2160 |
Yes, 29.97p, 25p , 23.98p |
Resolution 1920 x 1080 | Yes, (60p/50p/30p/25p/24p / 1080i60/i50 |
Resolution 1280 x720 |
Yes, 60p/50p/30p/25p/24p |
IP Section of the Product | |
IP Main Connection | Ethernet LAN RJ45 1000Base-T with POE+ |
IP Connection supports | Ethernet |
IP Features Live-Streaming | Yes |
IP Features Remote | Yes, via RM-LP100 or Web-Browser no apps needed |
Live-Streaming Bitrates | 1~60 Mbit/s |
Live-Streaming Protocols | NDI|HX, SRT, RTMP, RTMPS, RTSP |
Live-Streaming Single cast | Yes |
Live-Streaming Multicast | Yes |
IN-OUT´s Connections | |
OUT HDSDI | Yes, 3G HDSDI |
OUT HDSDI Format max. | 1080/60p,50p |
OUT HDMI | Yes |
OUT HDMI Format max. | 2160/30p,25p |
OUT Audio Line | Yes, 1 times 3.5mm mini jack |
IN Audio AUX | Yes, 1 times 3.5mm mini jack |
PTZ Serial Interface RS-232C in/out | Yes, over 8 PIN mini DIN |
PTZ Supported Protocols | Serial, PelcoD, IP JVC, IP others |
Power and Enviroment Spec´s | |
Power DC | Yes, 12 Volt or 42V to 57V POE+ over Network LAN |
Power consumption | 12W |
Operation Temperature in Celsius degrees | 0 to 40 |
Storage Temperature in Celsius degrees | -40 to 60 |
Mechanical Informations | |
Weight in kg | 1.7 |
Measurements (WxHxD) in mm | W 142 x H 164 x D 169 |
