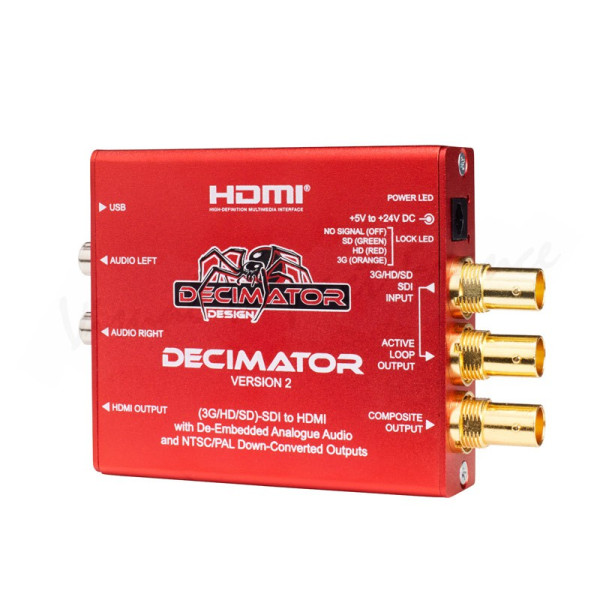

Decimator DECIMATOR 2

MINIATURE (3G/HD/SD)-SDI to HDMI with De-Embedded Analogue Audio and NTSC/PAL Down-Converted Outputs

• Auto detects 3G, HD or SD (26 Formats in total) and can handle switching of synchronous sources
• HDMI output- The input is passed unscaled
• De-Embedded Analogue Audio is output on 2 x RCA connectors at -10dBu = -20dBFS.
• Down-converted Composite output
  • NTSC or PAL is selectable for 3G/HD inputs
  • SD will be passed unchanged.
  • Low latency 3G/HD to SD Down-conversion with ARC (Aspect Ratio Conversion) of either:i) 16:9 to 16:9 Anamorphicii) 16:9 to 4:3 Letterboxiii) 16:9 to 4:3 Centre Cut (Crop to 4:3)
  • Full 10-bit data path and multipoint interpolation
  • 16 times over-sampling for Composite Output
• 3G/HD/SD-SDI Active Loop-Through Output
• External Dipswitch Configuration
• USB port for control and updates
• Locking DC Power Socket
• The following is also included with the unit:Power Supply, HDMI Cable, USB Cable and Mounting Bracket
