Fujinon

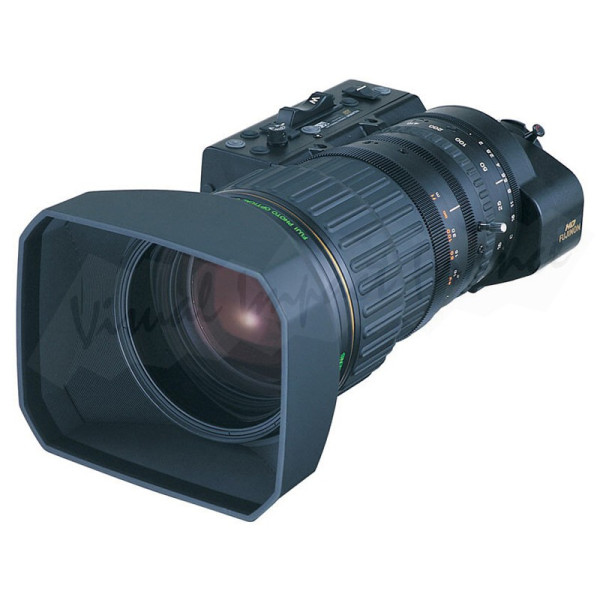

Fujinon HA42 x 9.7 BERD

HA Series / Objectif HD Broadcast 2/3″ 42x Super Télé avec extendeur 2x
HA42 x 9.7 BERD-U
HA42 x 9.7 BERD-U
Zoom

Image(s) non contractuelle(s)

Sur commande : Expédition sous 3 à 21 jours
96 919,20 € TTC
80 766,00 € HT

(80 766,00 € 1)

Vous avez trouvé ce produit moins cher ailleurs ? Contactez-nous !

Référence : HA42X9.7BERD-U48 - Id : 493873

Premier Series Stabilized Telephoto ENG Style lens for large venues or sporting events. Comes with lens support bracket.Digital servo remote control for full servo studio control, robotics, jibs, tower cams, teleconferencing and other applications where remote control of zoom, focus and iris via RS-232 serial data or traditional analog control is desired. Optional model HA42x9.7BERD-G with remote 2x extender available at additional price.

  • Camera Format : 2/3"Focal Length :
  • (1X) 9.7 ~ 410 mm
  • (2X) 19.4 ~ 820 mm
  • Zoom Ratio : 42X
  • Extender : 2XMaximum Relative Aperture :
  • 1:2 (9.7 ~ 225 mm)
  • 1:3.7 (410 mm)
  • Minimum Object Distance from Image Plane : 3.2m
  • M.O.D from Front of Lens : 2.8mObject Dimensions at M.O.D. :
  • 9.7mm 2619 x 1472mm
  • 410mm 64 x 36mm Angular Field of View (1X)
  • 9.7 mm 52° 37' x 31°03'
  • 410 mm 1° 20' x 0° 45'Angular Field of View (2X)
  • 19.4 mm 27° 46' x 15° 49'
  • 820 mm 0° 40' x 0° 23'
  • Filter Thread : ø 127mm P=0.75
  • Features OS-Tech /DIGI POWER/QuickZoom/Zoom Limit
  • Weight : (w/o hood) 5.3 kg
  • Memo : * ERD contain servos for zoom and focus
  • Dimensions : 130 x 341.5mm
  • Stabilization System : Optical shift system
  • Frequency of Compensation : Approx. 1 to 10 Hz
  • Anti-vibration Range : Approx. 20% of picture height

General

  • Marque Fujinon
  • Référence HA42X9.7BERD-U48

Features

  • Monture objectif 2/3"

Specific references

  • UPC : 493873
