La torche A1 V-White émet un spectre complet de la lumière avec un indice de rendu des couleurs très élevé

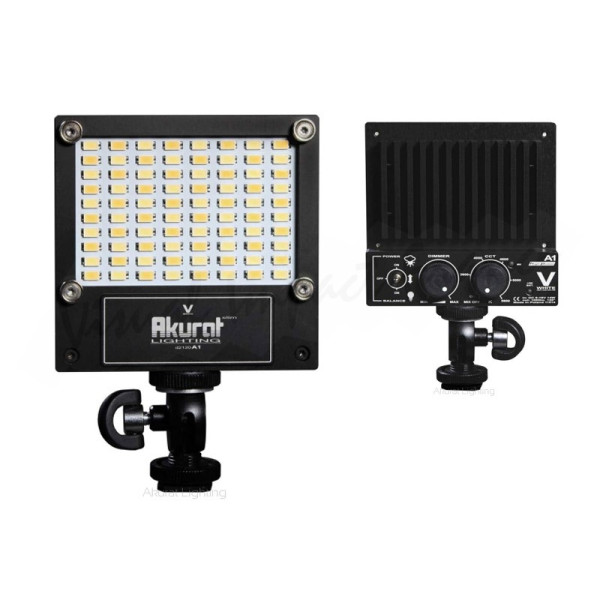

Small LED panel designed to be placed in the accessory shoe of the camera.The light is equipped with two sets of LEDs - warm 3200K and cold 5600K. These are innovative V-WHITE LEDs based on a purple chips. As a result, a substantial improvement of the spectrum of light was achieved, compared to competing products based on blue chip LEDs. CRI of an A1 light is greater than 97 and R9 factor, usually the weakest, in this case is higher than 96.The light allows to adjust accurately the brightness and colour temperature in range of 3200-5600K. The modern DC/DC converters are used in A1, to work in an efficiency above 95%.
Utility values
Very durable on-camera light for journalistic work, with exceptional quality of light, spectrally very similar to natural light. Such light is vivid, natural colours. Precise adjustment of a brightness and colour temperature controlled by the microprocessor allows to adjust the colour to ambient lighting conditions. Wide range of camera battery sockets allows you to use the same type of battery for your camera and the light. High energy efficiency causes long work without replacing the battery. Built-in intelligent optical low battery indicator.
The form, design, ergonomics
The housing is made of anodized aluminum and it works also as a heatsink for the LEDs. There are switch and excellent potentiometers on the back panel, for adjusting brightness and colour temperature. All the components are high quality professional products with an IP67 resistance against a water, humidity and dust. A1 is equipped in the biaxial adaptor with the central fixing screw, to mount the light to the typical "photo shoe" socket. Professional, reliable power socket is set on a side of the housing. It improves access to the control knobs. Barndoors with diffuser are available as an additional accessory (not included).
Photometric specification | |
illuminance at distance: | 0,6m : 790/813 lx 1,0m : 265/280 lx 1,2m : 173/199 lx 1,8m : 84/98 lx 2,4m : 48/58 lx |
angle of beam | 120° |
Correlated Color Temperature (switchable) | 3200/5600 K tungsten (+0K, +250K) /daylight (+0K +300K) |
Color Rendering Index CRI | Ra=98 |
Electrical specification | |
nominal voltage | 6-16V DC |
power polarization | (+) at center |
power current | 2.8A max. |
power | 14W max. consumption of power |
maximal voltage | 18V absolute max. voltage |
minimal voltage | 5,7V for max. illuminance |
Mechanical specification | |
amount of light sources (LEDs) | 80 |
width | 90 mm |
height (without mounting yoke) | 87 mm |
depth (without DVB-02 adapter) | 17 mm |
type of mounting | ball joint 2 axis yoke with photo shoe |
key material of body and yoke | aluminum |
weight | 0,27 kg |
Environmental specification | |
operating ambient temperature | -20+40°C |
storage ambient temperature | -40+80°C |
max. heat sink temperature | 60°C @ t amb 20°C |
max. heat sink temperature | < 80°C @ t amb 40°C |
max. ambient humidity | 85 % |
Ingress Protection Rating of switcher and dimmers | IP67 |
Others | |
durability of LEDs | 50 000 h |
Livrée avec sac de transport rigide.
Plaque d'alimentation en option
- DVB-02C PLAQUE CANON XF POUR LL2120
- DVB-02E PLAQUE CANON EOS POUR LL2121
- DVB-02P PLAQUE PANA CGA POUR LL2122
- DVB-02B PLAQUE PANA VW POUR LL2123
- DVB-02U PLAQUE SONY BPU POUR LL2124
- DVB-02F PLAQUE SONY NPF POUR LL2124
- LL2120-PROTECTIVE GLASS GLACE DE PROTECTION
- LL2120-DIFF GLASS HALF GLACE DE DIFFUSION BASSE DENSITE
- LL2120-DIFF GLASS HIGH GLACE DE DIFFUSION HAUTE DENSITE
- LL2120-D-TAPE CABLE CABLE D-TAP
- LL2120-AC ADAPTOR ALIMENTATION SECTEUR
