Swit S 3602 U
Le modèle S-3602U est un chargeur DV pour Sony à 2 canaux compatible avec la batterie SWIT S-8U62 et les batteries DV Sony série BP-U. Il est doté d'une sortie de câble d'adaptateur pour les cameras Sony XDCAM et XAVC
8 produit(s) en stock
126,00 € TTC
105,00 € HT

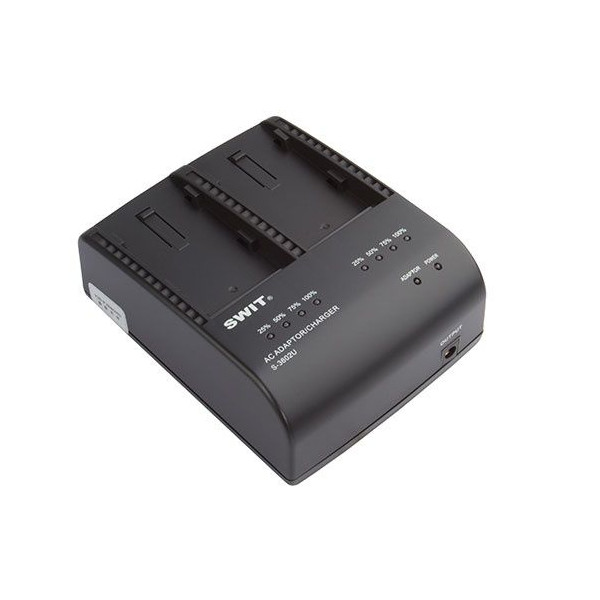

SONY BP-U series DV battery Charger
S-3602U is a dual channel charger for SWIT S-8U63 and compatible with SONY BP-U series batteries.
Intelligent Dual Channel Charging

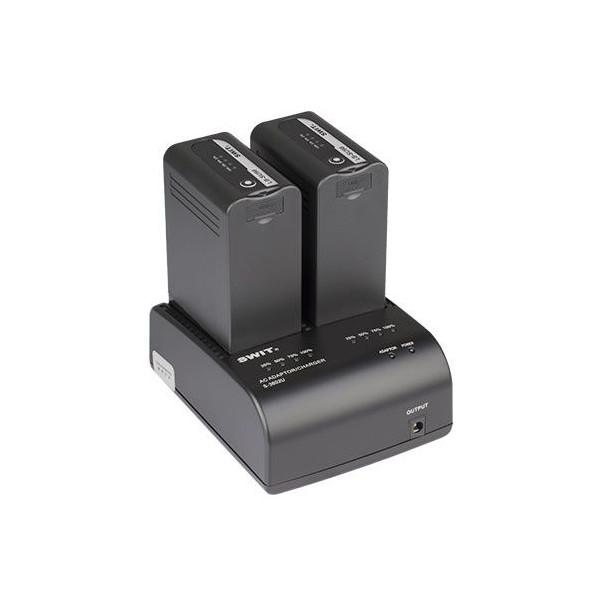

S-3602U has 2 charging channels, totally DC 16.7V, 1.9A output, and can charge 2 batteries sequentially to 75% capacity, and then charge both batteries simultaneously to full.The 4-level LED charging indicators are provided for each channel, which indicate the real time capacity by percentage when charging.
AC-DC Adapting Output

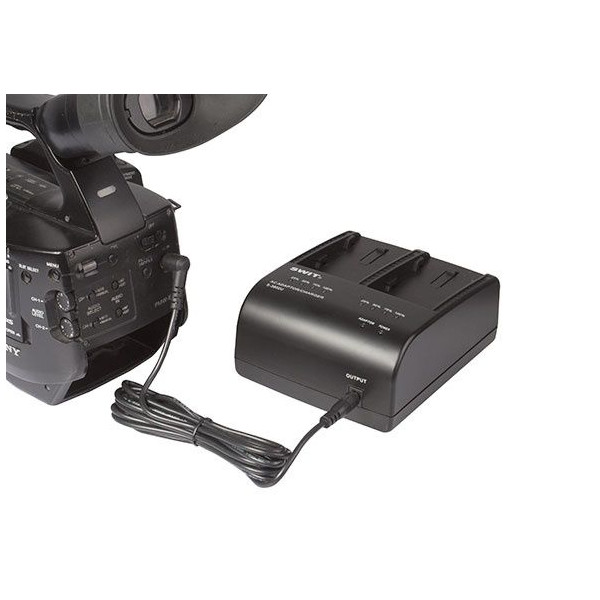

S-3602U has a 5.5mm/2.1mm pole socket of DC12V, 1.9A adapting output. The package also provides a DC cable for adapting SONY PMW-EX1/3/100/200 cameras.
Advanced Charging Curve
Li-ion charging follows a two-period approach. The first period is constant-current. The battery is charged at the maximum charging rate. When the battery reaches a specified set-point voltage, charging circuits switch to the second period: the constant-voltage period. The charging circuit will provide only enough current to maintain the voltage, to prevent the battery from over charging.
