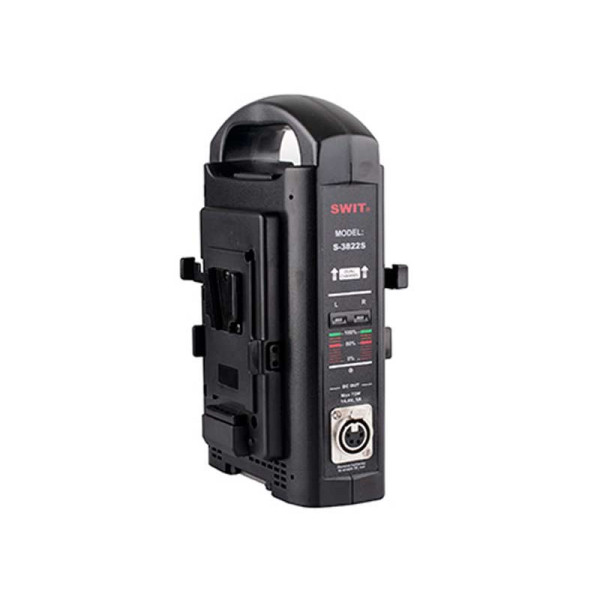

Swit S 3822 S

Chargeur / Alim V-Mount 2 voies simultanées
S 3822 S
Offres en cours
Le chargeur portable S-3822S peut charger simultanément 2 batteries V-mount. La sortie de charge est DC 16.8V, 3A × 2

1 produit(s) en stock

239 € HT

286,80 € TTC

Vi code : S-3822S - Id : 1082922

2-ch Simultaneous Charger - Charging current: 3A per channel
The portable charger S-3822S can charge 2 V-mount batteries simultaneously. The charging output is DC 16.8V, 3A×2

LED Charging Indicators
S-3822S has LED charging indicators on the front panel, indicates the real time capacity of each channel by different colors:
Display Red: Battery is charging, capacity below 80%;
Display Yellow: Battery is charging, capacity above 80%;
Display Green: Charging finished.

B>AC-DC Adapting Output
S-3822S has a 4-pin XLR female connector on the front panel. Connected with SWIT S-7102 XLR female to male cable (optional purchase), the S-3822S can be used as AC-DC adaptor of DC 14.4V, 5A, 72W output.Please note the AC-DC adapting output will not work when battery is charging.

Optimal Charging Curve
Li-ion charging follows a two-period approach. The first period is constant-current. The battery is charged at the maximum charging rate. When the battery reaches a specified set-point voltage, charging circuits switch to the second period: the constant-voltage period. The charging circuit will provide only enough current to maintain the voltage, to prevent the battery from over charging.

Multiple Safety Protection Design
SWIT charger can identify different chemical types of batteries, and provide the correct charging program, to protect the batteries from over current, over charging, high temperature, etc.

Input100?240V, 50/60Hz
Power consumptionMax136W
Charging outputDC 16.8V, 3A×2-ch
Adapting outputDC 14.4V, 5A
Working temperature0°C?+40°C
Working humidity10%?90%
Dimensions228mm×140mm×120mm
WeightApprox. 1.0kg
