Swit S 4610

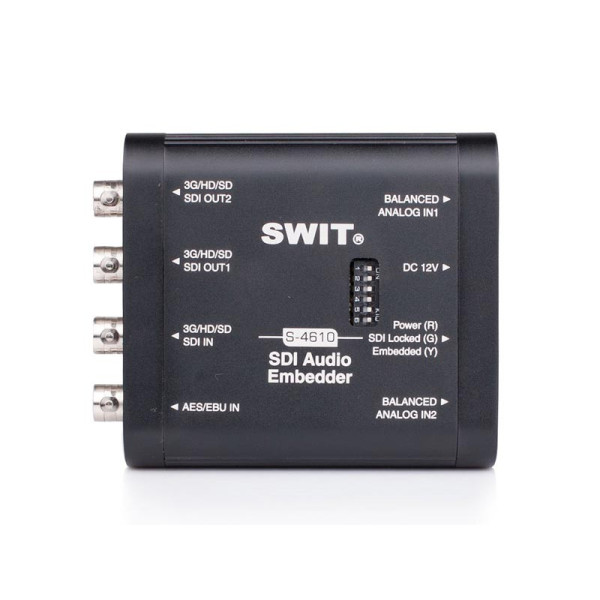

Convertisseur robuste Embedder Audio SDI

Image(s) non contractuelle(s)

Le S 4610 vous permet d'intégrer un contenu audio à votre source vidéo SD/HD et 3G-SDI. Intégrez les sources audio via les entrées AES/EBU et analogiques. Retrouvez vos sources vidéos et audio au travers des deux sorties SD/HD/3G-SDI.

Sur commande : Expédition sous 3 à 21 jours

308,40 € ^TTC

257,00 € ^HT

Documents joints

Catalogue Swit 2020

Téléchargement (0)

Référence : S-4610 - Id : 925494

Portable Mini Converter - SDI audio embedder
S-4610 is a portable mini converter of SDI audio embedder, supports digital audio or analog audio to embed, and SDI up to 3Gb/s. It's widely used in broadcast field production and professional audio/video conversion and transmission.

Input and Output
S-4610 provides:

1x 3G/HD/SD-SDI input1x AES/EBU digital audio input (2-ch)2x 6.35mm analog audio input (balanced)2x New embedded 3G/HD/SD-SDI output(If both AES/EBU audio and analog audio is connected, only AES/EBU audio can be embedded)

De-embed Channel Selection - By 6 switchers
S-4610 can embed 2-ch audio to any 2 positions of SDI first 8 audio channels. User can select the channel number to be embedded by the 6 switchers on the front panel of the product. And on the rear side, S-4610 provides the description of the 6 switchers for reference.

Status Indicators - Power / Input / Output
S-4610 provides 3 LED indictors, to check if the power is connected, if the SDI input is recognized, and if new embedded SDI outputs.

Power Supply - Pole-tap DC input
The mini converter is powered by pole-tap DC socket. The package includes an AC-DC power adaptor, and you can also connect DC cable from 6-18V batteries.

Heavy Duty Housing
The S-4610 mini converter adopts unibody aluminium alloy housing, strong for field using and protects the audio/video connectors effectively.

Installation
S-4610 provides the bottom 1/4-inch screw threads for fixing on cameras, and an installing plate is supplied in the package, for fixing on wall and binding the BNC/audio cables.

Input		Formats
SDI	SMPTE-425M	1080p (60 / 59.94 / 50)
	SMPTE-274M	1080i (60 / 59.94 / 50)
	SMPTE-274M	1080p (30 / 29.97 / 25 / 24 / 23.98)
	SMPTE-RP211	1080psf (30 / 29.97 / 25 / 24 / 23.98)
	SMPTE-296M	720p (60 / 59.94 / 50)
	SMPTE-125M	480i (59.94)
	ITU-R BT.656	576i (50)

Input
BNC ×1		3G/HD/SD-SDI input ×1
BNC ×1		AES/EBU digital audio input ×1
6.35mm ×2		Analog audio (balanced) input ×2
Output
BNC ×2		3G/HD/SD-SDI embedded output ×2
Video Formats
SDI	SMPTE-425M	1080p (60 / 59.94 / 50)
	SMPTE-274M	1080i (60 / 59.94 / 50)
		1080p (30 / 29.97 / 25 / 24 / 23.98)
	SMPTE-RP211	1080psf (30 / 29.97 / 25 / 24 / 23.98)
	SMPTE-296M	720p (60 / 59.94 / 50)
	SMPTE-125M	480i (59.94)
	ITU-R BT.656	576i (50)
Audio Formats
Digital audio	Type	AES/EBU
	Input level	5Vp-p
	Sample frequency	48KHz
Analog audio	Max input level	+24dbu
	Bandwidth	20Hz-20KHz
General
Power consumption		?3W
Working voltage		DC 6-18V
Working environment		Temperature: 0°C-+50°C, Humidity: 10%-90%
Dimension		98×84×29 mm
Net weight		235g

S-4610, 1x AC-DC power adaptor, 1x Install plate
