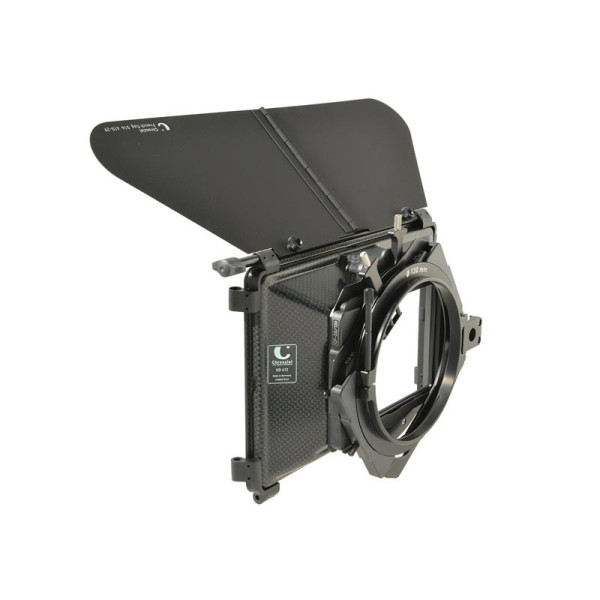

Chrosziel SD 412 Sunshade 130mm, complete
The technical data of the three versions is identicalexcept for the maximumclamp diameters (104 / 110 / 130 mm).
The included Double Filter Stage takes filters up to 5.65x5.65. Both filters slidevertically and can be fixed in any position, the second also rotates 250°. For optimal use of the picture angle, the filter-stages are equipped with multiformat filter-holders for 4x4 and 4x5.65" filters in the first stage and, in thesecond, rotating multi format filter-holder for 5x5 and 4x5.65" formats. Insert5x5" filters and fully use the wide angle format in any position of the rotatingstage. For even more flexibility when using e.g. graduation filters, insert 5x6"filters in the first stage (filter-holder 510-02).

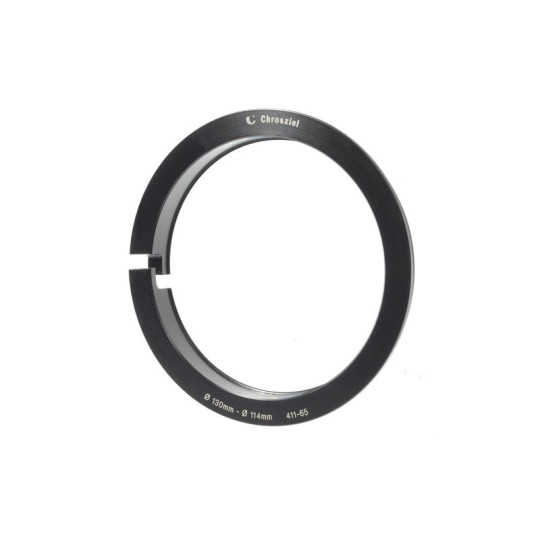

The connecting diameter of 104 mm and the respective Step-Down Rings fitmost lenses. For the further two standard versionswith 110 and 130mmclamp-on diameter various Step-down rings are available. The French Flag is included, Side Wings are optional.
For maximum stray light reduction, sets of mattes for 4:3 and 16:9 formats are available.
Compact Sunshade 4:3/16:9 F4.5 = CLWAH-F4.5 incl. French Flag + CF-SS/130 w. 2 Filterholder 1x fixed multiformat 4x4/4x5.650 (410-31) a. 1x rotatable multi-format 5x5/4x5.650 (510-01), Clamp Adaptor Ø130 mm"
Max. wide angle focus length F=mm | S16 : 6 mm S35 : 11 mm /still 16 SD : 3.9 mm HD : 4.3mm |
Multi-Format 4:3 and 16:9 | S16, S35, SD, HD |
Mattes 4:3 for F=mm | 4,8/10/20/30/48 |
Mattes 16:9 for F=mm | 4,8/10/20/30/48 |
Max. filter number / rotating / gear positioned | 2 / 1 / - |
Filter stage width (mm) | 150 |
Filter size (inch) | 4x4/4x5.65h + 5x5/4x5.65h |
Connecting diameter (mm) | 104 / 110 / 130 |
Support system: | Clamp adaptor* |
Arri Mini Matte Box MMB-2 double 4X5.65in LWS Set
Kit Mattebox 2 tiroirs - tige 15mm
Arri Mini Matte Box MMB-2 Basic LWS Set
Kit Mattebox 2 tiroirs - tige 15mm
SmallRig 3645 - Multifunctional Modular Matte Box VND Kit
Matte Box modulaire 1 tiroir 4x5.65" avec filtre VND - Ø15mm
Chrosziel Flexi Insertring Ø110:50/85mm
Bague réductrice 110 à 85-50mm pour mattebox MB415/450
Chrosziel MB 456 Academy Double
Mattebox 2 tiroirs rotatifs 4″x4″/5.65″ - 15mm

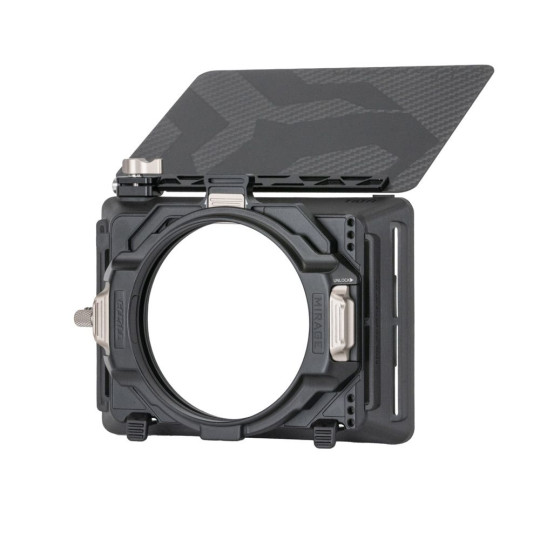

Tilta Mirage Matte Box VND Kit
