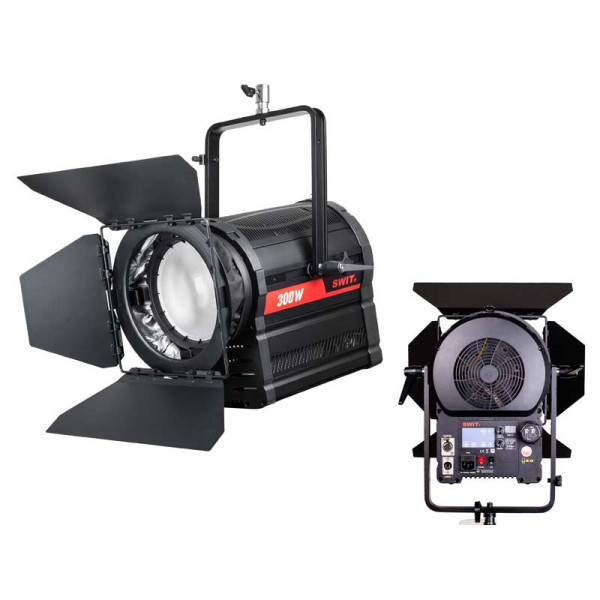

300W LED Spot Light - Ultra-bright and long-life
S-2330 is a studio LED spot light, with Chip-on-board LEDs of 50,000 hours lifetime, and generates 300W light output, which is an ideal light source for broadcast studio and field video productions.
Spot / Flood Adjust - 20° - 70° beam angle
S-2330 outputs 20° - 70° beam angle by adjusting position of the LED board, and 0-100% non-flickering dimmable. The following output illuminace at different distance is for reference:
Distance | 20°Spot | 70°Flood |
3 meters | 5940Lux | 913Lux |
5 meters | 2139Lux | 364Lux |
7 meters | 1090Lux | 193Lux |
Bi-color temperature - 10-100% flick-free dimming
S-2440C outputs 50W power, feeds 1250Lux luminance at 1 meter distance (center), supports 10% to 100% PWM digital dimming, smoothly and non-flickering..
High Color Reveal Ability - CRI Ra >= 95; TLCI >= 95
CRI (Color Rendering Index) is a measure of the ability of a light source to reveal the colors of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is special for the color reveal ability by camera sensor. Max value 100.
The normal LED light has 80-85 CRI or TLCI, while S-2330 offers the super high CRI at 95 and TLCI at 95, and will not lose the object original colors.
DMX512 Control - Dimmer and Color temperature
S-2330 adopts standard 5-pin DMX in/out port, supports DMX512 protocol, and adjusts dimmer and color temperature by DMX controller.
The dimmer and color temperature occupy 1 DMX address respectively.
LCD screen display - Dimmer / color temperature value / DMX address
The rear LCD screen can display the current dimmer percentage, color temperature value, and set DMX address, supports touch control to adjust and set.
Silent Mode - Switch off fans
S-2330 adopts silent fans to radiate heat, which will not affect normal shooting environment to record audio.
While in strictly silent required broadcast environment, S-2330 can be switched to "Silent Mode" to turn off the fans. Anyway, during the Silent Mode running, when the light detected temperature over 75 degree, it will be switched off automatically to pretect the LED.
Sleep Mode - Quick recover brightness
S-2330 supports Sleep Mode": you can switch off the light by pressing the DIMMER knob, to enter Sleep Mode. And press the DIMMER knob again
Beam angle | 20°- 70° | ||
Max illuminance | 3m | Spot 5940Lux | Flood 913Lux |
5m | Spot 2139Lux | Flood 364Lux | |
7m | Spot 1090Lux | Flood 193Lux | |
Color temperature | 3000K - 8000K | ||
CRI | >= 95 | ||
TLCI | >= 95 | ||
Power | 300W | ||
Working voltage | AC 100-240V 50/60Hz | ||
Dimension | 490×500×400mm | ||
Weight | 11.1kg |
- 1x U-shape bracket
- 1x Barn door
- 1x Black-out cloth
- 1x AC power cable (4 meters)
