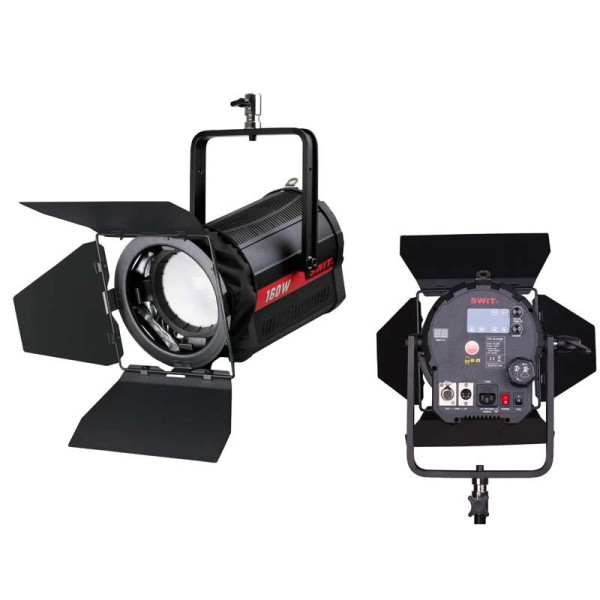

160W LED Spot Light - Ultra-bright and long-life
S-2320 is a studio LED spot light, with Chip-on-board LEDs of 50,000 hours lifetime, and generates 160W light output, which is an ideal light source for broadcast studio and field video productions.
Spot / Flood Adjust - 20° - 70° beam angle
S-2320 outputs 20° - 70° beam angle by adjusting position of the LED board, and 0-100% non-flickering dimmable. The following output illuminace at different distance is for reference:
Distance | 20°Spot | 70°Flood |
3 meters | 1800Lux | 546Lux |
5 meters | 666Lux | |
7 meters | 320Lux | 100Lux |
Bi-color temperature - 10-100% flick-free dimming
S-2320 LED board alternated with 3000K and 8000K LEDs, and the output color temperature can be continuously adjustable between 3000K and 8000K.
High Color Reveal Ability - CRI Ra >= 95; TLCI >= 95
CRI (Color Rendering Index) is a measure of the ability of a light source to reveal the colors of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is special for the color reveal ability by camera sensor. Max value 100.
The normal LED light has 80-85 CRI or TLCI, while S-2320 offers the super high CRI at 95 and TLCI at 95, and will not lose the object original colors.
DMX512 Control - Dimmer and Color temperature
S-2320 adopts standard 5-pin DMX in/out port, supports DMX512 protocol, and adjusts dimmer and color temperature by DMX controller.
The dimmer and color temperature occupy 1 DMX address respectively.
LCD screen display - Dimmer / color temperature value / DMX address
The rear LCD screen can display the current dimmer percentage, color temperature value, and set DMX address, supports touch control to adjust and set.
Silent Mode - Switch off fans and Max brightness reduced to 50%
S-2320 adopts silent fans to radiate heat, which will not affect normal shooting environment to record audio.While in strictly silent required broadcast environment, S-2320 can be switched to Silent Mode" to turn off the fans. Anyway, during the Silent Mode running, when the light detected temperature over 75 degree, it will be switched off automatically to pretect the LED.
Sleep Mode - Quick recover brightness
S-2320 supports "Sleep Mode": you can switch off the light by pressing the DIMMER knob, to enter Sleep Mode. And press the DIMMER knob again the S-2320 can be quickly light up to the previous dimmer value.
4-leaf Metal Barn Door - With black-out cloth
S-2320 is equipped with 4-leaf metal barn doors, dismountable and rotatable. Meanwhile, the light provides a special black-out cloth to prevent the light leakage."
Beam angle | 20°- 70° | ||
Max illuminance | 3m | Spot 1800Lux | Flood546Lux |
5m | Spot 666Lux | Flood 196Lux | |
7m | Spot 320Lux | Flood 100Lux | |
Color temperature | 3000K - 8000K | ||
CRI | >= 95 | ||
TLCI | >= 95 | ||
Power | 160W | ||
Working voltage | AC 100-240V 50/60Hz | ||
Dimension | 390×320×370mm | ||
Weight | 5kg |
