Le Kiloview CUBE R1 est un enregistreur NDI multicanal ultra-performant capable de capturer jusqu’à 9 flux NDI en UHD 4K60. Doté d’un écran tactile 5.5", de slots SSD hot-swappable, de ports 10GbE et d’un enregistrement synchronisé, il garantit une fiabilité maximale en environnement broadcast.

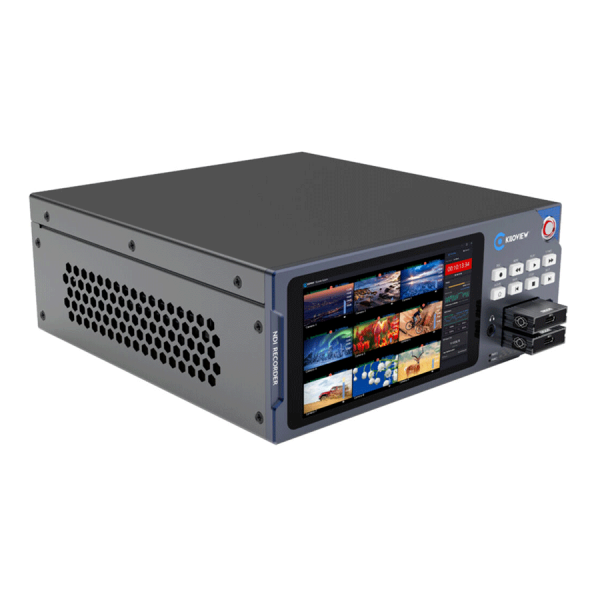

Kiloview CUBE R1
Enregistreur multicanal NDI 4K60 avec écran tactile, enregistrement synchronisé sur SSD, affichage multivue, ports 10GbE et double alimentation redondante.
Caractéristiques principales
- Enregistrement jusqu’à 9 flux NDI UHD 4K60 simultanément
- 2 emplacements SSD NVMe hot-swappable avec verrou de sécurité
- Écran tactile LCD 5,5" avec affichage multivue 1/4/9 sources
- Ports réseau 10GbE + alimentation redondante pour diffusion fiable
Enregistreur multicanal UHD 4K60 pour flux NDI
Le Kiloview CUBE R1 permet l’enregistrement simultané de 1 à 9 flux vidéo NDI jusqu’en UHD 4K60. Il est conçu pour les environnements professionnels les plus exigeants : broadcast, médical, visio-conférence, mur d’image, etc. Grâce à ses ports 10GbE et ses alimentations redondantes, la bande passante et la sécurité sont assurées.
Enregistrement continu sur SSD NVMe
Le CUBE R1 est équipé de deux emplacements SSD hot-swappable compatibles avec tous les SSD NVMe du marché. Le système permet un enregistrement continu, avec basculement automatique de fichier, sans interruption ni perte de données.
Synchronisation précise des flux NDI
Grâce à son serveur NTP intégré, le CUBE R1 enregistre tous les flux avec une parfaite synchronisation temporelle. L’interface permet le déclenchement en un clic, garantissant un workflow fiable, même avec plusieurs sources en simultané.
Interface tactile et affichage multivue
Son écran LCD tactile 5,5" affiche l’état des ressources système (température, CPU, bande passante, stockage) ainsi que les vues 1/4/9 sources, les niveaux audio, les VU-mètres et l’état de synchronisation. Les noms des sources peuvent être personnalisés à la volée.
Enregistrement par durée ou taille
Le CUBE R1 permet d’enregistrer par durée fixe ou taille de fichier prédéfinie. Une fois le seuil atteint, l’unité passe automatiquement au fichier suivant, garantissant l’intégrité des données sans perte d’images.
Model No. | CUBE R1 |
---|---|
Recording Capacity | NDI HB Standalone Recording: 4KP60: 4 channels 1080P60: 9 channels Record and Playback Simultaneously: 4KP60: 1 channel 1080P60: 4 channels Transcoding + Standalone Recording: 4KP60: 1 channel 1080P60: 4 channels Transcoding + Record and Playback Simultaneously: 4KP60: 1 channel 1080P60: 1 channel NDI HX |
Local Dual-Drive Recording Capability | NDI|HB Standalone Recording: 4KP60: 4 channels 1080P60: 4 channels Record and Playback Simultaneously: 4KP60: 1 channel 1080P60: 4 channels Transcoding + Standalone Recording: 4KP60: 1 channel 1080P60: 4 channels Transcoding + Record and Playback Simultaneously: 4KP60: 1 channel 1080P60: 1 channel NDI|HX |
NAS Recording | NDI|HB Standalone Recording: 4KP60: 1 channel 1080P60: 4 channels Record and Playback Simultaneously: 4KP60: 1 channel 1080P60: 4 channels Transcoding + Standalone Recording: 4KP60: 1 channel 1080P60: 4 channels Transcoding + Record and Playback Simultaneously: 4KP60: 1 channel 1080P60: 1 channel NDI|HX |
Streaming Protocol | NDI High-Bandwidth/NDI HX2/NDI HX3 |
File Encoding Format | Video: Native NDI SpeedHQ SHQ0/SHQ2/SHQ7 formats H.264/AVC encoding H.265/HEVC encoding Supports SpeedHQ to H.264/H.265 encoding format conversion Audio: |
Max Resolution | Up to 4KP60 |
Storage | 2*Kiloview Storage Stick (Optional 1TB/2TB industry-grade NVMe SSD) |
Display | 1/4/9 multi-screen video preview, recording status display, playback, etc. |
Recording Strategy | By length or file size |
Recording Format | .MOV |
Control Knob | 1: support Backward/Forward and press to Pause/Resume |
Buttons | 6: support record, stop, play, home/return, backward skip, forward skip. |
Ports | 2*10GbE SFP+ fiber Ethernet 1*1GbE RJ-45 Ethernet1*HDMI 2.0 output 2*USB 2.0 Type-A 1*3.5mm TRS audio line in/out |
Cooling | Built in dual cooling fans and large ventilation mesh design, the entire machine relies on active air cooling to dissipate heat |
Network | 2*10GbE SFP+ Fiber Ethernet 1*1GbE RJ-45 Ethernet |
CPU | 8 core 64-bit |
RAM | 12GB |
Power Supply | Redundant power, 100~230V AC |
Operating System | Linux |
Power Consumption | ≥20W |
Working Temperature | -20~50°C / 14°F~131°F |
Storage Temperature | -20~50°C / -4°F~149°F |
Management | Web |
Dimension (mm) | 220*231.45*88mm, half width of 2U rackmount chassis |
Weight | 1.88kg |
Product Type | Product No. | NDI Codec Capability | Video I/O Connectivity | Resolution | Notes |
---|---|---|---|---|---|
NDI Bi-Directional Converter |
N6 | NDI High Bandwidth/NDI HX | HDMI | 1080P60 | |
N5 | NDI High Bandwidth/NDI HX | 3G-SDI | 1080P60 | ||
N50 | NDI High Bandwidth/NDI HX | 12G-SDI | 4KP60 | ||
N60 | NDI High Bandwidth/NDI HX | HDMI | 4KP60 | SRT Support | |
N3-s | NDI High Bandwidth | 3G-SDI | 1080P60 | ||
N30 | NDI High Bandwidth | 12G-SDI | 4KP60 | ||
N40/N40 Plus | NDI High Bandwidth | HDMI | 4KP60 | ||
NDI Wireless Encoder | N1 | NDI HX | SDI | 1080P60 | WiFi supported, Battery Builld-in |
N2 | NDI HX | HDMI | 1080P60 | WiFi supported, Battery Builld-in | |
NDI Encoder | E3 | NDI HX | SDI+HDMI | 4KP30 in HDMI, 1080P60 in SDI | |
U40 | NDI High Bandwidth/NDI HX | HDMI | 4KP60 | ||
E1 | NDI HX | SDI | 1080P60 | ||
E2 | NDI HX | HDMI | 1080P60 | ||
NDI Decoder | D350 | NDI High Bandwidth/NDI HX | SDI+HDMI | 4KP60 | |
D260 | NDI HX | SDI+HDMI | 1080P60 |
Bitrate Reference | ||||
---|---|---|---|---|
Protocols | NDI High Bandwidth | NDI|HX | NDI|HX2 | NDI|HX3 |
Bitrate | 100~250Mpbs | 8~20Mpbs | 1~50Mpbs | ~80Mpbs |
one hour | 43~109GB | 3.5~8.7GB | 0.4~21GB | ~35GB |
1TB | ||||
Single channel | ~24hours | ~105hours | ~43hours | ~26hours |
Four channels | ~6hours | ~26hours | ~10hours | ~6.5hours |
Nine channels | ~2.5hours | ~12hours | ~5hours | ~3hours |
2TB | ||||
Single channel | ~48hours | ~210hours | ~86hours | ~54hours |
Four channels | ~12hours | ~52hours | ~20hours | ~13hours |
Nine channels | ~5hours | ~24hours | ~10hours | ~6hours |
